Sales of industrial fans & blowers, high pressure blowers, centrifugal fans, axial ventilators, roow and wall exhaust and supply fans, material handling blowers & radial fans, scroll cage fan ventilators, high temperature fans and blowers, New York Blower, Twin City Fan / Aerovent, Chicago Blower fans, Peerless Fans, Dayton Ventilators, Sheldons fans & blowers, Canarm Leader ventilators, IAP fans, Industrial Air. Large blowers and ventilators for industrial plants from Buffalo, New York.
High temperature fans, industrial process pressure blowers, high pressure side channel regenerative pressure blowers; industrial; process and commercial heating; ventilating and air conditioning equipment.

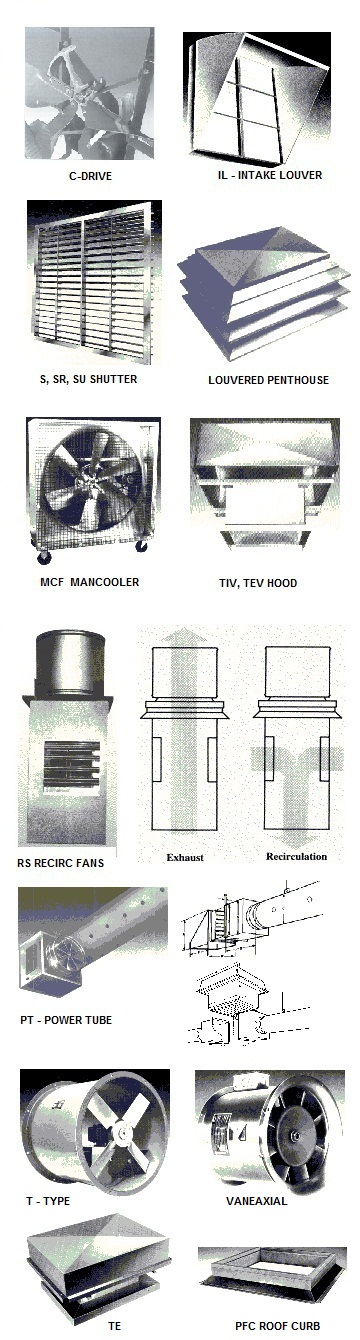

Canada Blower Centrifugal Power Roof Ventilators:
Canada Blower RREH Three-Way Heat Saver / Ventilator is a multi-purpose fan designed for ventilating applications that require air recirculation. Canada Blower reversible fan and versatile damper control systems make a unique year-round ventilator capable of operating in three different modes: Heat Saver Mode, Mixed Air Mode, and Exhaust / Supply Mode.
Each Canada Blower ventilator is constructed with close tolerances between the fan propeller tips and the orifice to maintain maximum efficiency. The reversible, cast aluminum alloy fan propeller is secured to the motor shaft with a split taper lock bushing. The hood of the Canada Blower Three-Way Heat Saver / Ventilator is constructed of corrosion-resistant, fiberglass reinforced polyester and is attached to the fan with heavy-duty structural angle supports for added fan stability.
Typical Canada Blower Three-Way Heat Saver Fan Configuration features:
• Hooded inlet
• Motor operated recirculating dampers
• Direct drive reversible panel fan
• Plenum section
• Prefab insulated fan curb (optional)
• Modulated supply fan damper (optional) to mix outside air with recirculated air
• Modulated temperature control (optional) to temper recirculated air with outside fresh air.
Buildings with high ceilings save on energy costs by using the Three-Way Heat Saver configuration. During the winter, heated air inside the building rises to the ceiling where it becomes trapped. Air temperatures near the ceiling may be 5°F to 20°F higher than temperatures at the floor in the working area. Due to convection, the heat is transferred to the exterior side of the ceiling. This causes the building to lose heat. To compensate for this heat loss and maintain a uniform temperature, the building’s heating system must continually work at maximum levels. By installing the Canada Blower Heat Saver unit, the warmer air at the ceiling is recovered and directed to the working area. As standard, the unit is furnished with recirculating dampers on two sides of the plenum fan section. The unit recirculates the air by inducing it through the recirculating dampers and directing it back to the floor level. Recirculating the heated air minimizes the transfer of heat through the building’s ceiling and reduces the energy load on the building’s heating system. By recycling the trapped warm air, a manufacturer can expect to save 10 to 30% on fuel bills. In areas where high heat loads occur, Canada Blower Three-Way Fan Heat Saver / Ventilator can operate in the mixed air mode and mix the recirculated air with outside air to maintain a comfortable working environment.
Heat Saver Mode – In the heat saver mode the unit induces warmer air trapped near the ceiling through the recirculating dampers and directs it downward to the working area. Recirculating the air in this way reduces the load on the heating system by maintaining a nearly uniform temperature between the floor and the ceiling.
Mixed Air Mode – The optional modulating fan damper control system permits outside air to be added to the recirculated air. This is particularly desirable in spring and fall when wide outside temperature fluctuations can cause the heating system to override.
Exhaust Mode / Supply Mode – With the recirculating fan dampers closed, the ventilator can be used to exhaust hot air from the ceiling area. By reversing the fan rotation, 100 % outside air can be supplied. The reversible Canada Blower fan moves the same volume of air in both the supply and exhaust directions. The fan’s rotation is easily switched between supply and exhaust by using the optional reversing starter.
In large rooms, it is particularly effective to use several ventilators for summertime ventilation, using alternating units as supply fans and exhaust fans. All Canada Blower ventilators can then be arranged in this pattern for thorough coverage.
An integral part of Canada Blower Three-Way Heat Saver / Ventilator is Modulating Damper Fan Control package. The Modulating Damper Control package is designed to modulate one supply / exhaust fan damper, mounted horizontally at the roof curb level, and two recirculating fan dampers, mounted vertically on two sides of the fan’s plenum section. The three fan dampers are modulated to provide the right mix of recirculated air and outside air which reduces the heat load on the building’s heating system, lowering the building’s energy usage. The Damper Control package modulates the three fan dampers by using a discharge-air temperature-sensor, controlled from a remote set point. The dampers are modulated to maintain the temperature selected on the remote station. Modulating the fan dampers provides the right mix of recirculated air and outside air for supply, exhaust and recirculating operations. The control station is furnished as a separate part for remote mounting at the site. It houses the reversing starter switch for starting the fan and changing direction (reversing motor starter optional), and a temperature set point for temperature adjustments between 40° and 90°F. A mounting fan bracket for the discharge sensor is included for field installation at the fan plenum discharge.
All Canada Blower blowers are available in spark-resistant construction and with explosion proof motors.

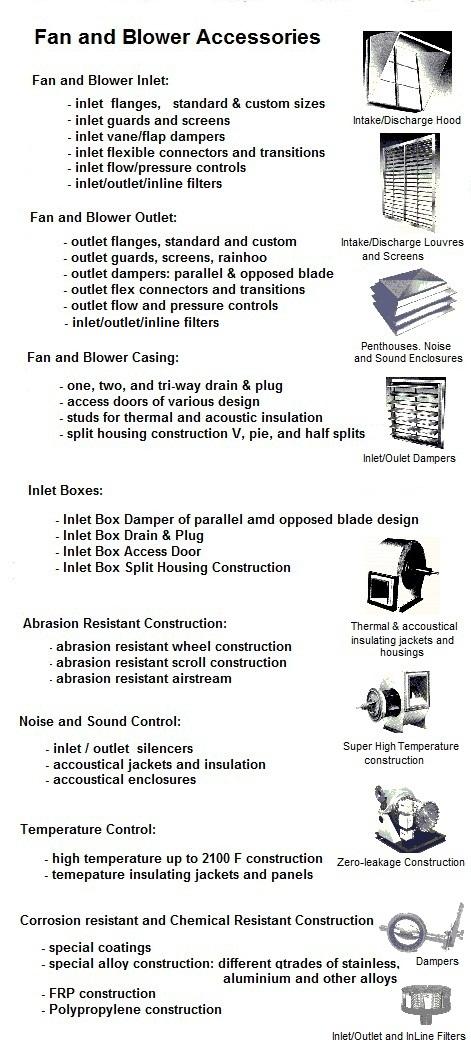

Available blower accessories include: inlet and outlet silencers, outlet dampers, aluminum and stainless steel impellers.
